Geometry-Preserving in 3D Gaussian Splatting for LiDAR-Camera Extrinsic Calibration

Kyoleen Kwak, Daeho Kim, Jeong Woon Lee, and Hyoseok Hwang*
{2007kkl, kdh2769, everyman123, hyoseok}@khu.ac.kr
* Corresponding author

Rendering Quality ≠ Calibration Quality

KITTI-360 Seq. 2 ground-truth view with the analyzed crop region marked

Ground-truth camera view, KITTI-360 Seq. 2. The red box marks the region magnified below.

Ground-truth crop
GT

Base rendering, crop
Base
PSNR 15.81
GeoP-Calib rendering, crop
GeoP-Calib (Ours)
PSNR 12.65
Rendering Calibration
PSNR ↑ SSIM ↑ Er (°) ↓ Et (m) ↓
Base 15.81 0.702 0.156 0.084
GeoP-Calib (Ours) 12.65 0.663 0.145 0.059

The Base pipeline renders 3.2 dB better.
GeoP-Calib still localizes the camera 30% more accurately.
Rendering fidelity is not the objective — metric geometry is.

PSNR / SSIM computed over the full image of the frame shown above. Er / Et are means over five random seeds on KITTI-360 Seq. 2. “Base” is our pipeline with Gradient Decoupling and Dense Depth Anchoring disabled.

Abstract

Accurate LiDAR-camera calibration is essential for robust multi-modal perception. Targetless approaches avoid manual setup but remain limited by the scarcity of discriminative cross-modal features. Recent methods address this by reconstructing the scene within a differentiable model, enabling extrinsic optimization through dense photometric supervision. Among these, 3D Gaussian Splatting (3DGS) has been widely adopted as a geometric proxy that bridges LiDAR and camera within a single differentiable framework. However, since 3DGS was originally designed for novel view synthesis, existing methods tend to prioritize rendering quality, causing the proxy geometry to drift from the true LiDAR structure. We propose a framework that preserves the metric geometry of the Gaussian proxy by aggregating multi-view LiDAR observations for dense depth supervision and blocking photometric gradients from updating the Gaussian spatial parameters. We validate our method on public driving datasets, where it consistently outperforms existing targetless methods in calibration accuracy.

How 3DGS Calibrates a LiDAR–Camera Pair

Gaussians are initialized on LiDAR points and rendered into the camera view, so the extrinsic $\mathbf{T}_{cl}$ can be optimized by minimizing image-domain losses. Two losses do the work.

Photometric Alignment  $\mathcal{L}_{pho}$

Aligns the extrinsics by matching the rendered image to the observed one. The signal reaches $\mathbf{T}_{cl}$ through the learned Gaussian color.

Cross-view Consistency  $\mathcal{L}_{rep}$

Warps pixels into an adjacent frame with the rendered depth and compares ground-truth intensities. The signal is mediated by depth, not color.

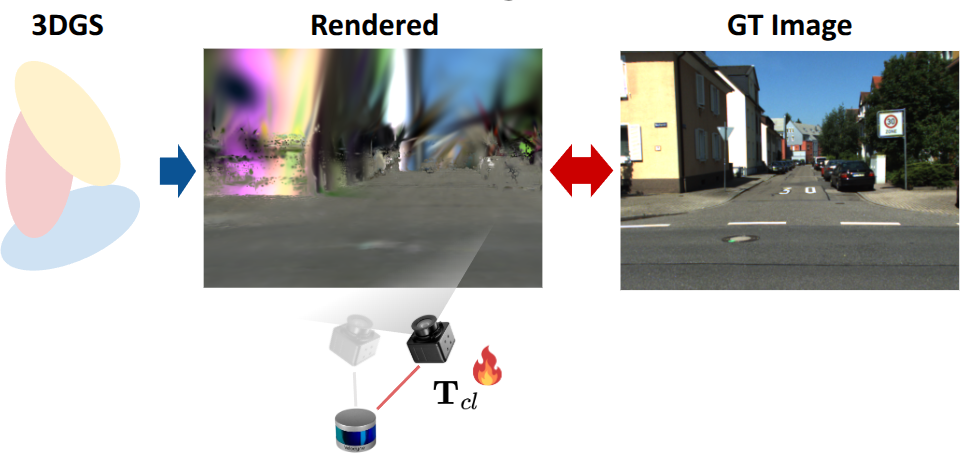

Photometric alignment: rendered image compared against the observed image

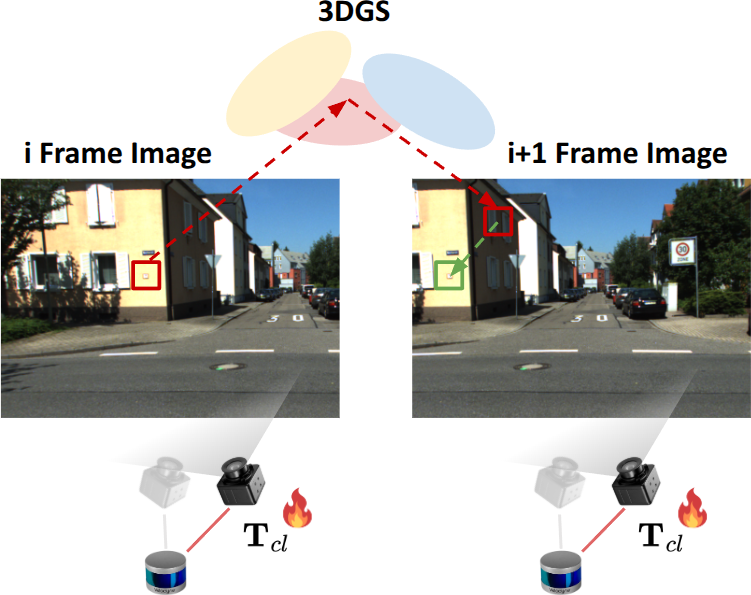

Reprojection: pixels warped into an adjacent frame using the rendered depth

Both losses reach the extrinsics through the renderer. The Jacobian $\partial\Phi(\mathcal{G},\mathbf{T}_{cw})/\partial\mathbf{T}_{cl}$ depends on the current proxy state $\mathcal{G}$ — so every extrinsic update is only as trustworthy as the geometric fidelity of the Gaussian proxy.

Geometric Decay

A single LiDAR scan supervises only a small fraction of the image. Everywhere else the optimizer is free to move Gaussians to reduce photometric residuals — and it does, drifting the proxy away from the true LiDAR structure.

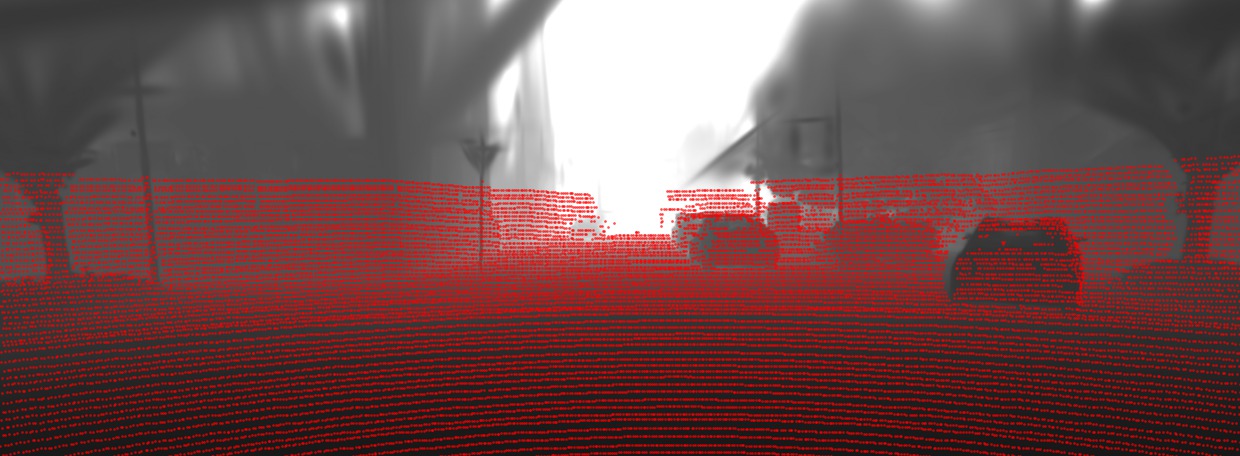

w/ photometric alignment
Rendered depth when the photometric alignment loss is active

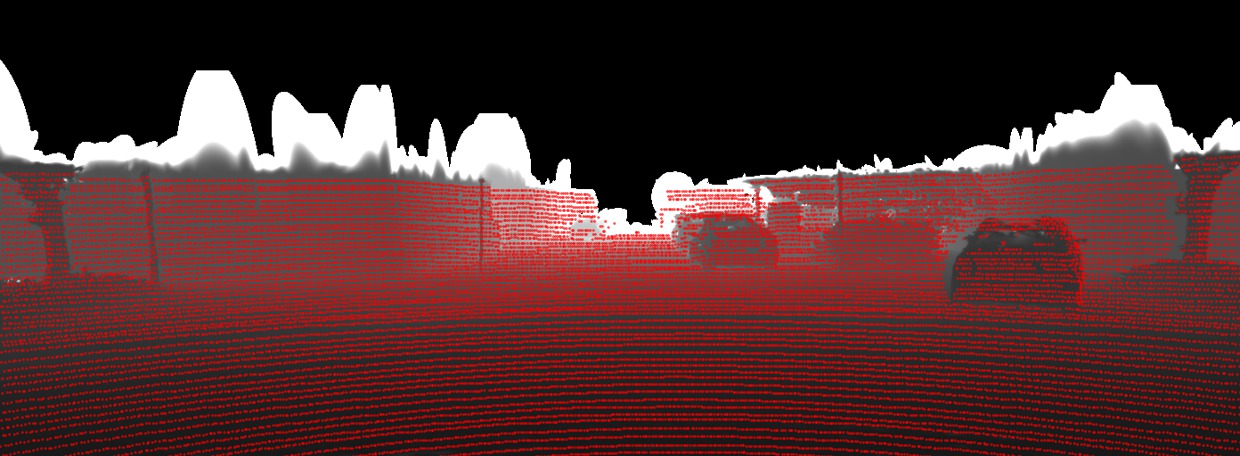

depth supervision only
Rendered depth when only the depth loss is used
Rendered depth on KITTI-360 Seq. 1, with the projected LiDAR points overlaid in red. The two runs share the same pipeline — only the photometric alignment loss differs. With it active (left), depth spreads far above the LiDAR line into regions where no measurement exists. With depth supervision alone (right), the geometry stays where the LiDAR actually saw something. The photometric loss is what pulls Gaussians into the void — and that void is exactly where a rendering-oriented pipeline earns its PSNR. Gradient Decoupling restores the right-hand behavior, which is why our rendering in the teaser shows green there.

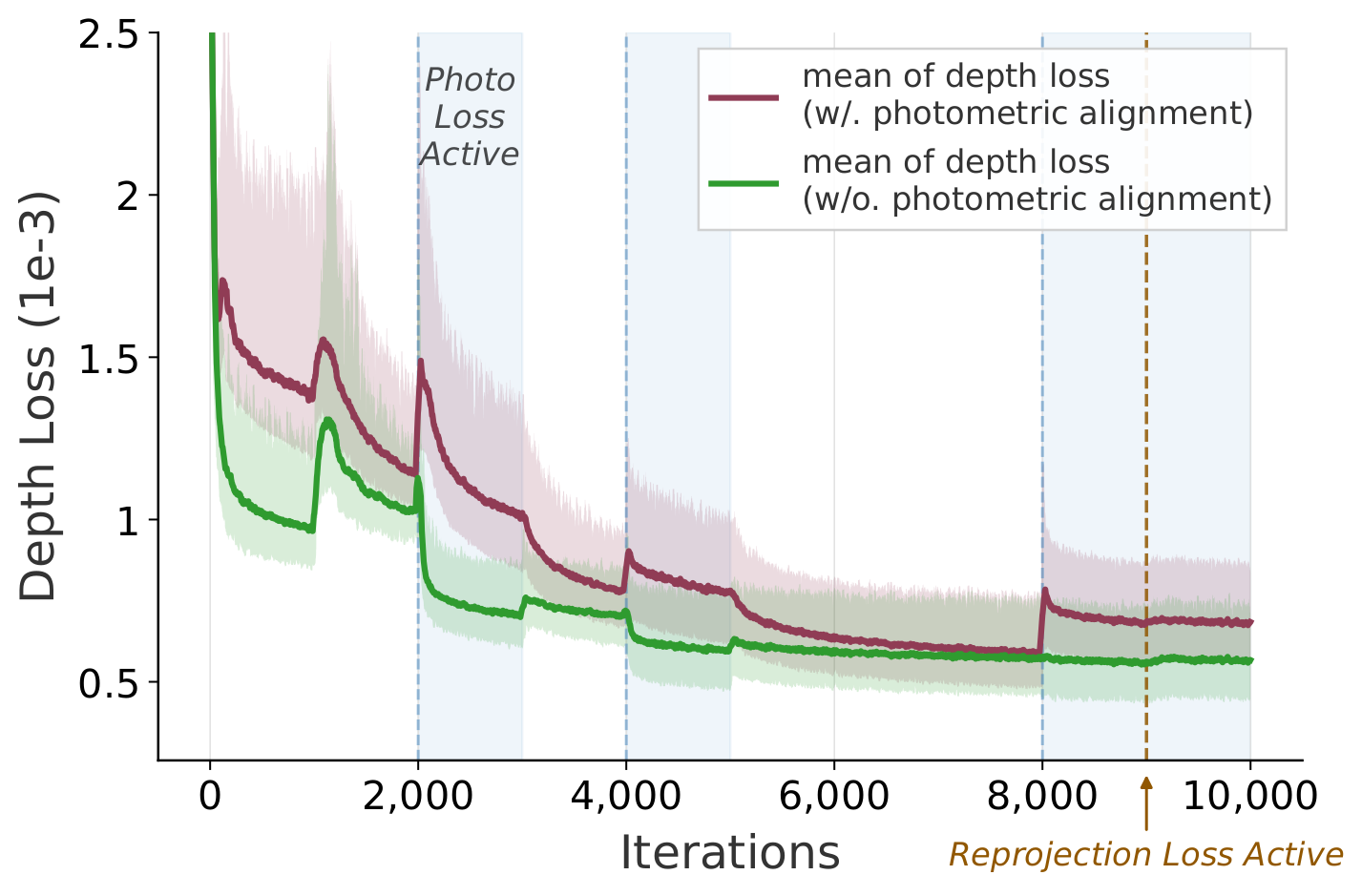

Depth loss over training, with and without photometric alignment
The depth loss rises whenever photometric alignment is active and settles when it is not — while the later activation of the reprojection loss causes no comparable degradation. This asymmetry is what motivates blocking only $\mathcal{L}_{pho}$.

GeoP-Calib

Two components that keep the Gaussian proxy metrically faithful while the extrinsics are still being refined. They cooperate but stay gradient-decoupled: DDA governs where the geometry may sit, GD decides what is allowed to move it.

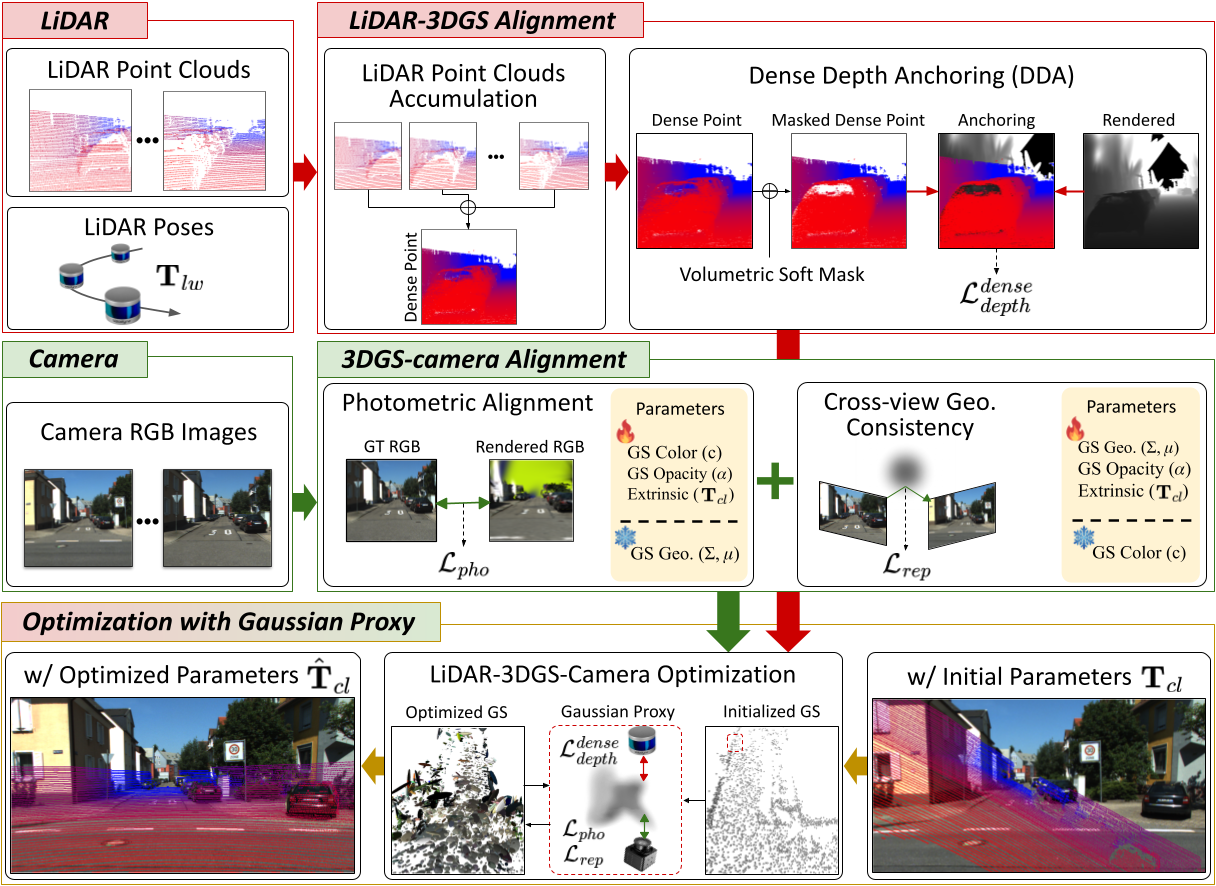

Overview of the GeoP-Calib pipeline
Overview of the geometry-preserving calibration pipeline.

Dense Depth Anchoring (DDA)

A single scan leaves most of the image unconstrained, so we accumulate every LiDAR observation into a global cloud $\mathcal{P}_{global}=\bigcup_t (\mathbf{T}^t_{lw})^{-1}\mathcal{P}^t$ and project it back into the current view. The resulting dense anchor $D^{dense}_l$ covers far more of the image than one scan and pins the Gaussian spatial parameters $(\mu,\Sigma)$ even where the current frame has no returns.

Volumetric Soft Mask (VSM)

Accumulation introduces occlusion ambiguity — points seen from a distant viewpoint land on foreground objects. We use the rendered depth itself as a continuous visibility prior, down-weighting anything that sits far behind the Gaussian surface:

$W_{vis}(\mathbf{p}) = \sigma\!\left(\beta \cdot \big(D_{rend}(\mathbf{p})(1+\tau) - D^{dense}_l(\mathbf{p})\big)\right)$

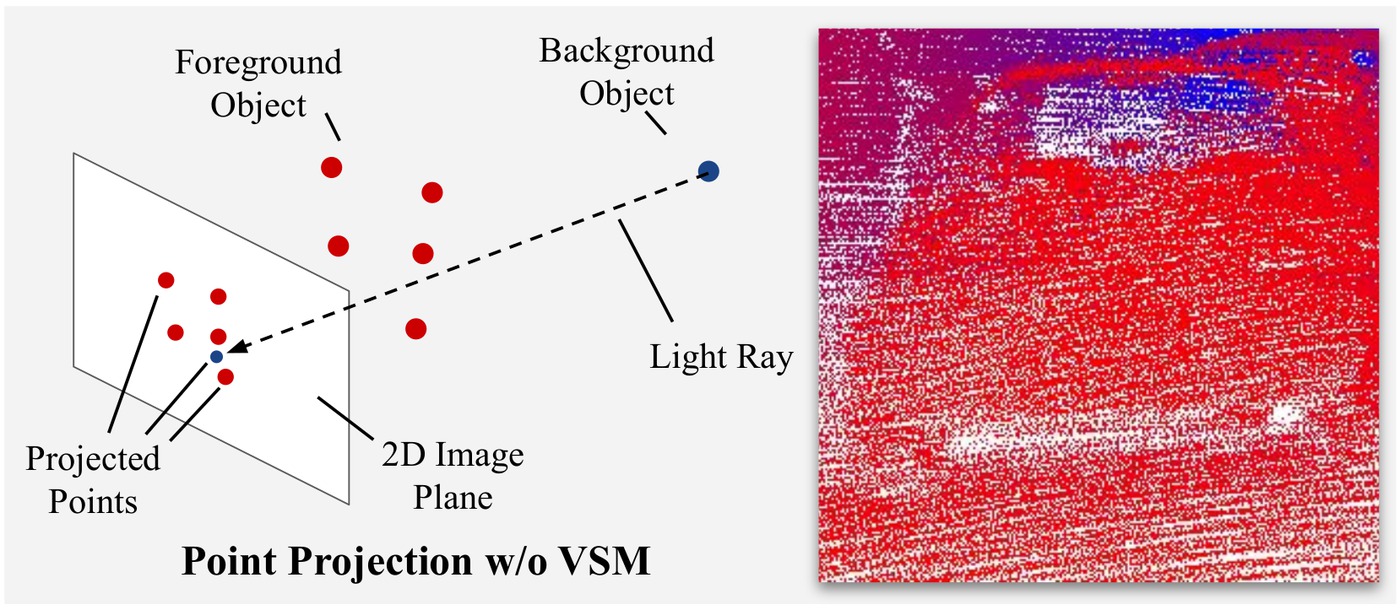

Point projection without the volumetric soft mask

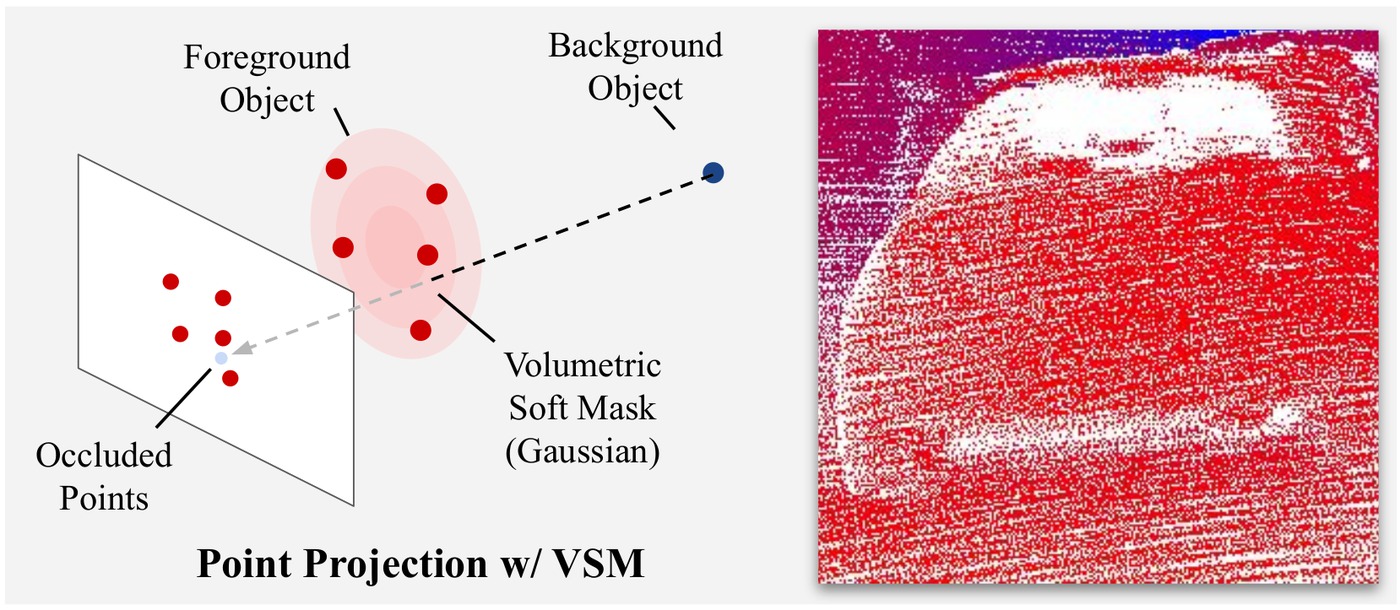

Point projection with the volumetric soft mask
Color encodes depth (red = near, blue = far). Without VSM, background points travel along the light ray and land on top of the foreground object; with VSM those occluded projections are down-weighted and the foreground reads as a single surface.

Gradient Decoupling (GD)

We apply a stop-gradient to the spatial parameters inside the color rendering path, so texture-driven residuals can no longer deform the geometry:

$\mathcal{L}^{decoupled}_{pho} = \mathcal{D}_{photo}\Big(I^t,\, \Phi_{color}(\text{sg}[\mu,\Sigma],\alpha,c,\mathbf{T}_{cl}\mathbf{T}^t_{lw})\Big)$

Crucially, GD is applied only to $\mathcal{L}_{pho}$. The reprojection loss keeps its gradients to $(\mu,\Sigma)$: it compares ground-truth intensities through depth-induced correspondences without ever touching the learned Gaussian color, so it encourages view-consistent structure rather than per-view texture fitting.

$\mathcal{L}^{GeoP}_{total} = \mathcal{L}^{decoupled}_{pho} + \lambda_{rep}\mathcal{L}_{rep} + \lambda^{sparse}_{depth}\mathcal{L}^{sparse}_{depth} + \lambda^{dense}_{depth}\mathcal{L}^{dense}_{depth}$

Results

Five random seeds per entry, reported as mean (standard deviation). Bold is best, underlined is second best.

Calibration Accuracy

Seq. GST [16] Claim [35] RobustCalib [37] HiGS-Calib [33] GeoP-Calib (Ours)
Er(°)Et(m) Er(°)Et(m) Er(°)Et(m) Er(°)Et(m) Er(°)Et(m)
KITTI-360
Seq. 1 0.351(0.080) 0.326(0.018) 0.663(0.409) 0.142(0.148) 0.202(0.021) 0.059(0.006) 0.111(0.016) 0.036(0.006) 0.124(0.046) 0.031(0.006)
Seq. 2 4.631(2.543) 0.394(0.254) 0.614(0.219) 0.056(0.030) 0.272(0.046) 0.107(0.019) 0.177(0.031) 0.087(0.004) 0.145(0.020) 0.059(0.007)
Seq. 3 0.991(0.199) 0.335(0.212) 0.232(0.073) 0.073(0.041) 0.307(0.047) 0.076(0.002) 0.103(0.096) 0.177(0.106) 0.074(0.030) 0.059(0.002)
Seq. 4 1.011(0.176) 0.316(0.210) 0.809(0.641) 0.296(0.253) 0.246(0.068) 0.133(0.005) 0.167(0.161) 0.118(0.111) 0.110(0.042) 0.071(0.001)
Seq. 5 0.751(0.423) 0.206(0.071) 0.284(0.110) 0.079(0.039) 0.248(0.003) 0.109(0.012) 0.141(0.010) 0.098(0.001) 0.153(0.030) 0.093(0.003)
Avg. 1.547(1.570) 0.315(0.099) 0.520(0.303) 0.129(0.126) 0.255(0.055) 0.097(0.028) 0.140(0.059) 0.103(0.055) 0.121(0.041) 0.063(0.021)
KITTI
Seq. 1 2.626(1.151) 0.251(0.082) 0.247(0.125) 0.044(0.016) 0.305(0.051) 0.050(0.006) 0.112(0.008) 0.042(0.002) 0.105(0.009) 0.034(0.001)
Seq. 2 1.310(0.294) 0.232(0.058) 0.371(0.107) 0.092(0.030) 0.482(0.417) 0.074(0.014) 0.201(0.003) 0.056(0.001) 0.160(0.010) 0.054(0.001)
Seq. 3 1.106(0.678) 0.167(0.050) 0.219(0.066) 0.052(0.017) 0.300(0.018) 0.083(0.008) 0.239(0.016) 0.052(0.005) 0.224(0.018) 0.023(0.001)
Seq. 4 0.512(0.186) 0.413(0.159) 0.354(0.078) 0.067(0.018) 0.298(0.102) 0.084(0.009) 0.269(0.011) 0.062(0.001) 0.250(0.024) 0.052(0.001)
Seq. 5 2.801(1.475) 0.327(0.178) 0.411(0.056) 0.051(0.013) 0.375(0.150) 0.119(0.012) 0.209(0.007) 0.065(0.003) 0.201(0.016) 0.056(0.002)
Avg. 1.671(0.892) 0.278(0.085) 0.352(0.074) 0.082(0.022) 0.352(0.071) 0.082(0.022) 0.206(0.053) 0.055(0.008) 0.188(0.051) 0.044(0.013)

GeoP-Calib attains the lowest rotation error on 7 of 10 sequences and the lowest translation error on 7 of 10, and improves translation over HiGS-Calib on every sequence.

Component Analysis

GDDDAVSM Er(°)Et(m)T(s)
0.122(0.031) 0.077(0.022) 875(16)
0.117(0.044) 0.068(0.021) 923(16)
0.127(0.042) 0.067(0.022) 866(21)
0.124(0.045) 0.066(0.024)
0.121(0.041) 0.063(0.021) 922(21)

KITTI-360, averaged over the five sequences. VSM is a sub-component of DDA and is not defined without it; the GD + DDA row was not timed. Runtime is the mean per sequence on an RTX 4070 Ti with a Ryzen 3600. Translation improves with every component added, while rotation stays comparable to Base — GD suppresses the far-range texture cues that would otherwise refine rotation.

Rotation
Rotation error across nine initialization noise levels
Translation
Translation error across nine initialization noise levels
KITTI-360 Seq. 2, initial extrinsics perturbed from 1°/0.1 m to 9°/0.9 m. GeoP-Calib converges under every level tested.

Rendering Quality Does Not Imply Calibration Quality

GT
Ground-truth image

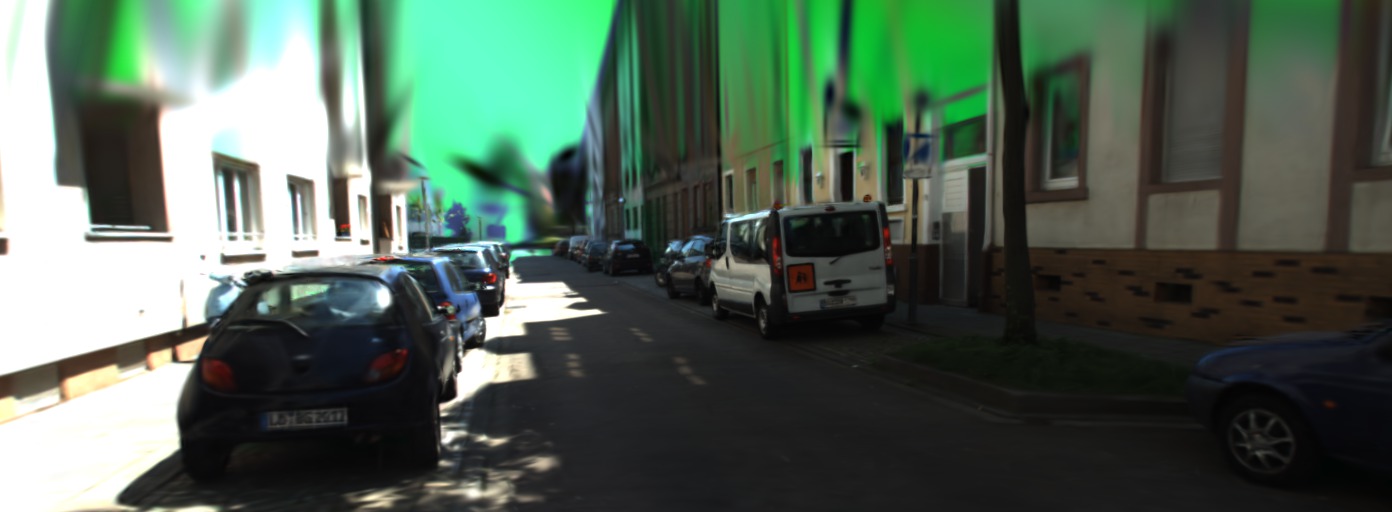

Base — PSNR 15.81
Base rendering

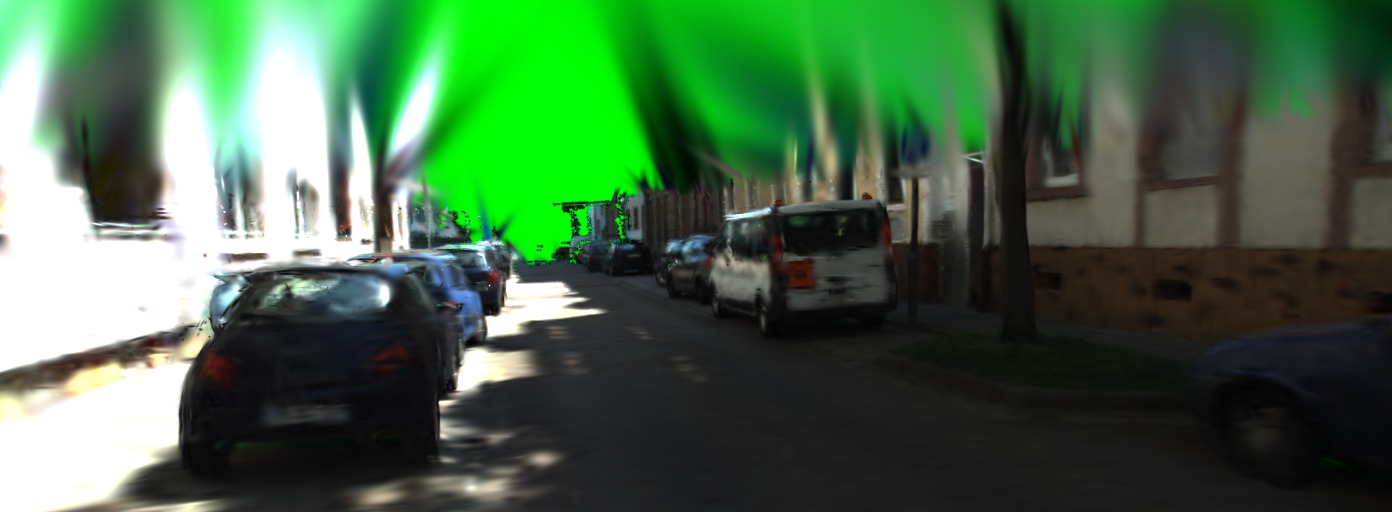

Ours — PSNR 12.65
GeoP-Calib rendering
The green regions carry no LiDAR support, so GeoP-Calib places no Gaussians there. It renders worse and calibrates better. Photometric fidelity is not a sufficient condition for accurate calibration — the Gaussian proxy is discarded after calibration anyway; only the estimated extrinsics are kept.

Geometric Accuracy

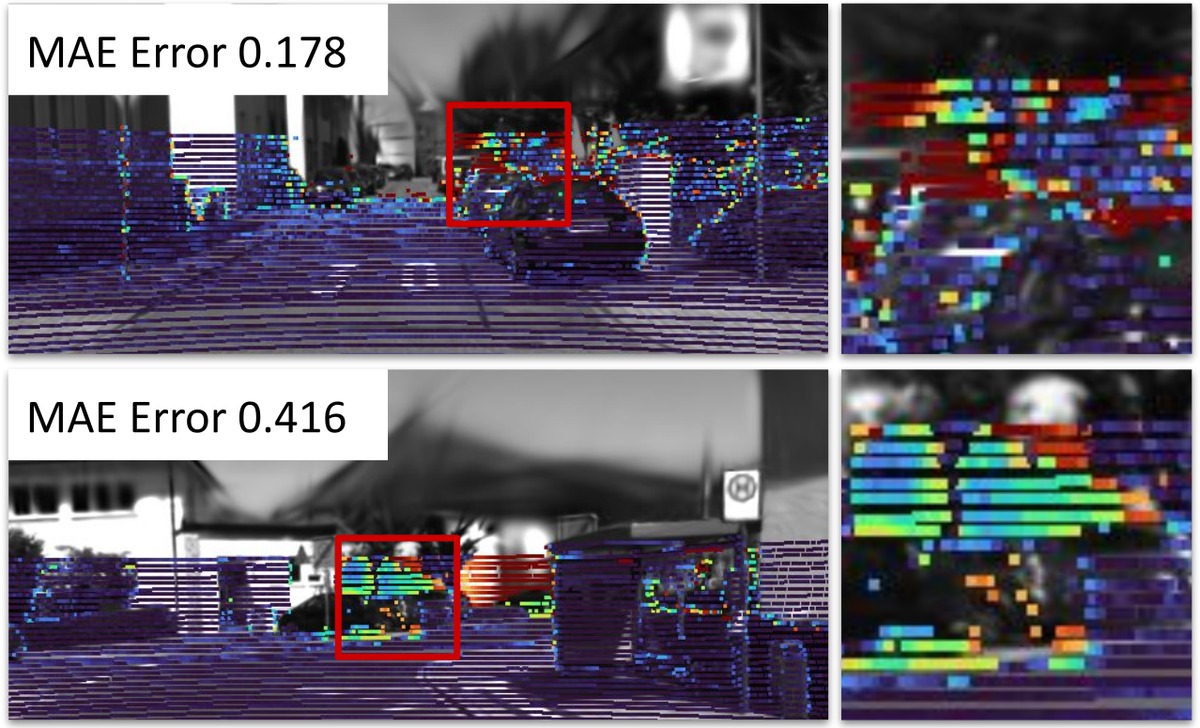

(a) Base
Depth error maps, Base

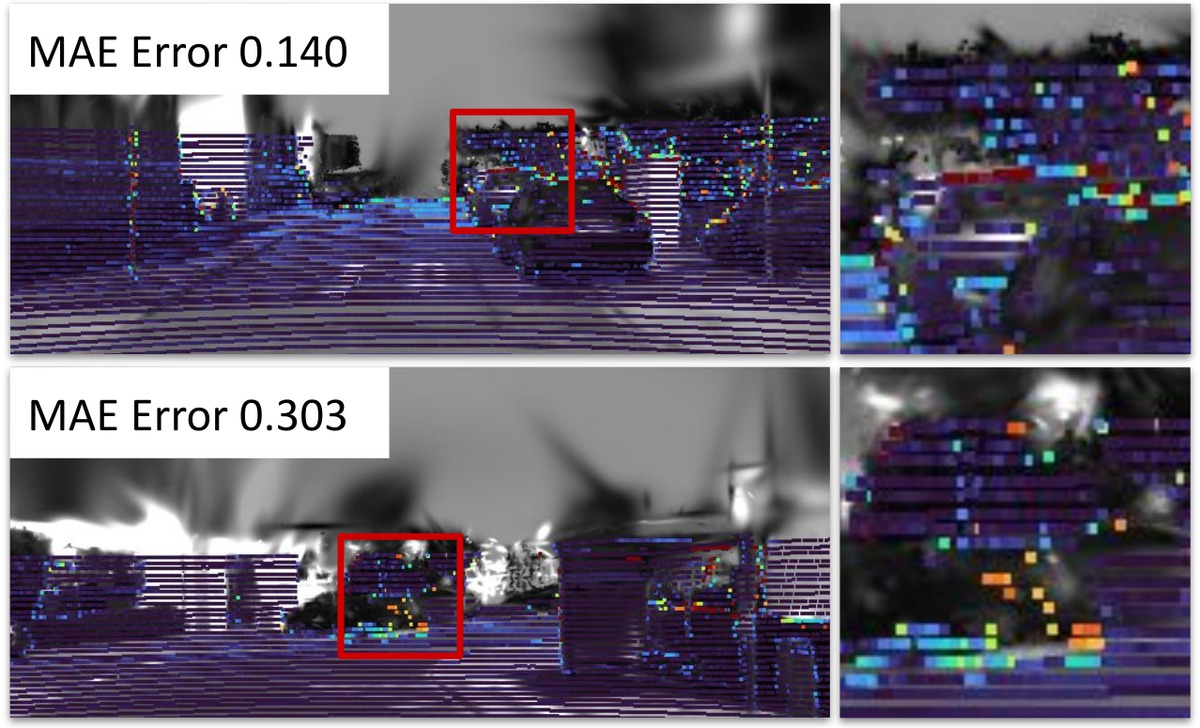

(b) GeoP-Calib (Ours)
Depth error maps, GeoP-Calib

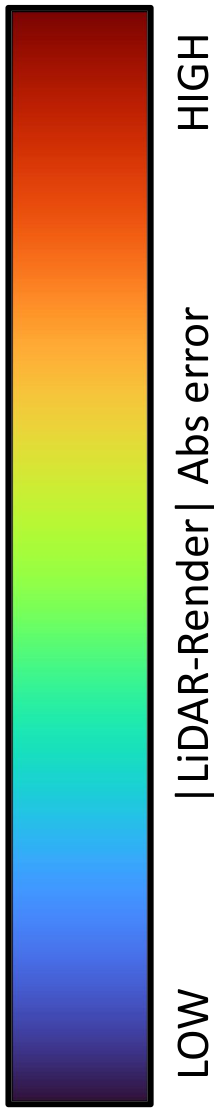

Error magnitude color bar
Absolute error between rendered depth and LiDAR depth on KITTI-360, in the LiDAR-translation and camera-rotation setting (blue = low, red = high). Base shows localized blow-ups consistent with Geometric Decay; GeoP-Calib's error is more evenly distributed. Across KITTI-360 the mean depth MAE drops from 0.294 to 0.244 (−17%).

Calibration in Motion

Every sequence optimized from a perturbed initialization. The estimated camera pose converges onto the ground truth, the projected LiDAR locks onto the image, and the rotation and translation errors fall in step. Each clip is a 5 × 3 grid — full screen is worth it.

KITTI-360 — Seq. 1–5
KITTI — Seq. 1–5
Top row: estimated vs. ground-truth camera pose relative to the LiDAR. Middle: LiDAR points projected with the current extrinsics, with the live rotation and translation error. Bottom: the 3DGS proxy being rendered along the way.
